ProHub AWD Chassis Dynamometers

AWD4600CCS

PROHUB AWD CHASSIS DYNAMOMETERS (CAN CONTROL SYSTEM)

The ProHub AWD CCS (CAN Control System) Chassis Dynamometers are the ultimate “in chassis” tuning solution for vehicle high-performance 2WD & AWD vehicle applications.
Designed for testing high-performance street cars and some drag car applications, the ProHub AWD Chassis Dynamometers effectively bridge the gap between an engine dynamometer and a roller-based chassis dynamometer which rely heavily on the tyre to roller interface (traction).

PORTABLE DESIGN

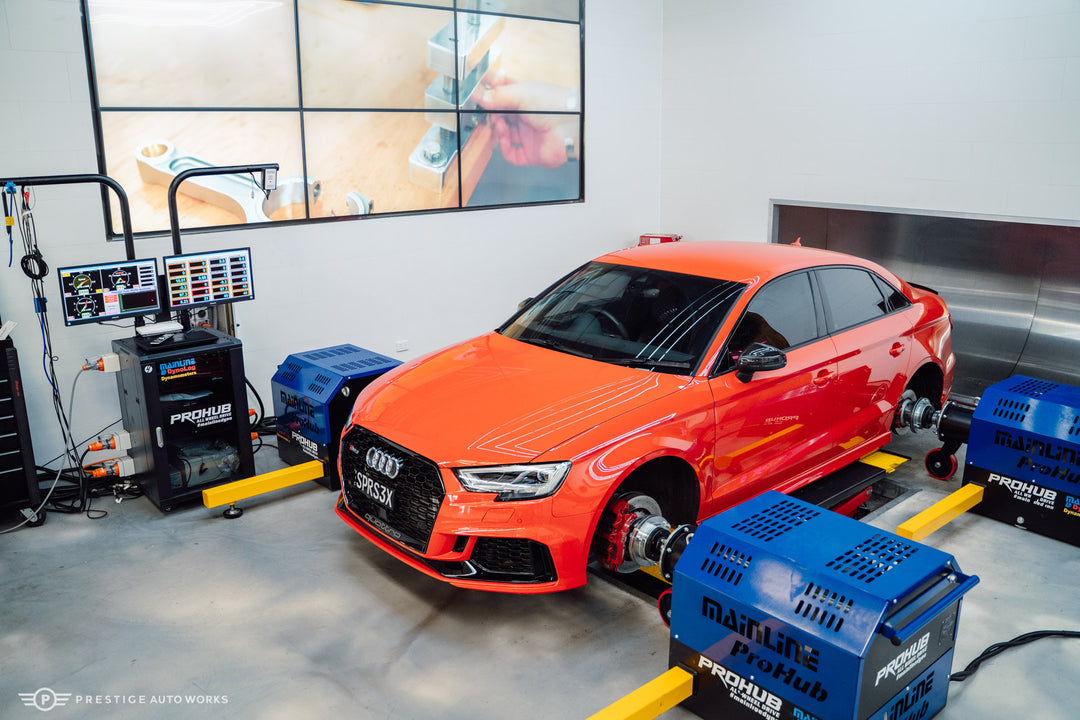

The “Power Absorption Modules” (PAMS) have integrated wheel assemblies allowing them to be easily moved to the vehicle, correctly aligned, and connected to the vehicle’s axle hubs.  After testing is complete, the PAMS can be rolled away and stored when not in use. These units are quick to set up, easy to move around your shop, and can be stored away when not required for use. The Power Absorption Modules (PAMS) can be disconnected from the cabinet without hand tools.

The front modules on all ProHub AWD models are intentionally rated at 1600Hp, to effectively test lower-powered 2WD vehicles. All ProHub AWD models can test FWD, RWD, or AWD/4WD vehicles.

HIGH SPEED OPERATION

All ProHub models are maximum speed rated up to 5000 Axle Rpm or equivalent road speeds of up to 400 mph (640 kph), subject to vehicle gearing.

VEHICLE AXLE HUB CONNECTION

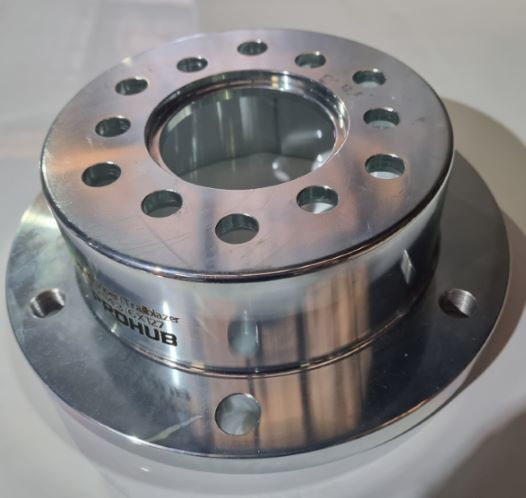

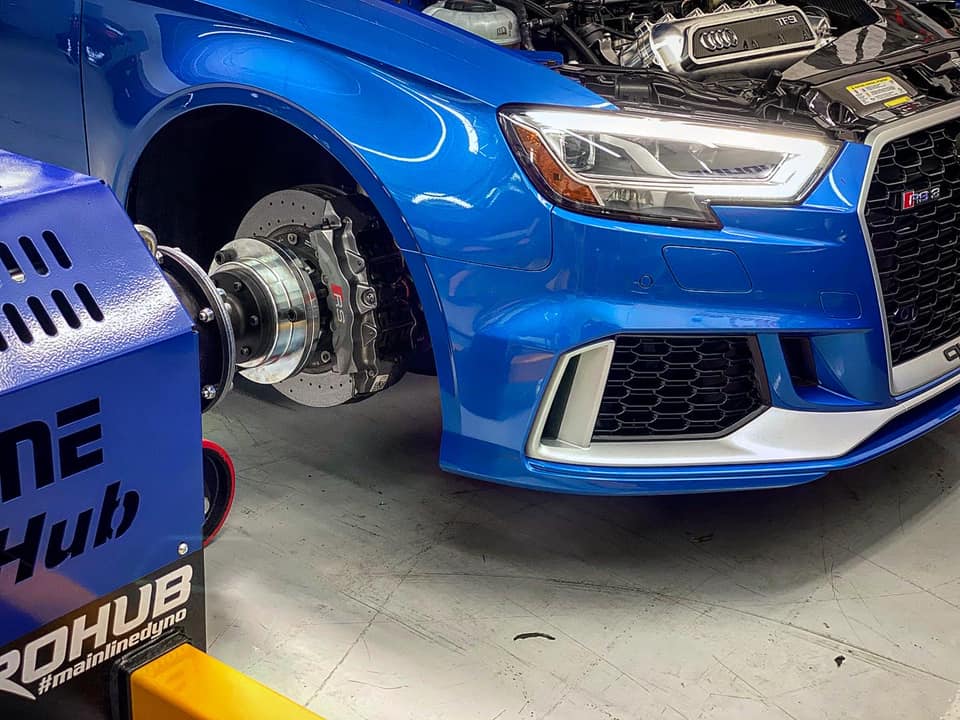

The ProHub AWD modules connect directly to the vehicle's axle hubs via billet steel adaptors, effectively removing wheel and tyre-related variables from the testing and tuning equation altogether, for absolute accuracy, and the ultimate in test data repeatability from power run to power run.

NON-COAXIAL DESIGN

All Mainline ProHub Chassis Dynamometers are a "non-coaxial" type design. This means the power absorption modules (PAMS) sit flat on the floor, and you do not have to adjust the angle of the modules to match the camber angles of the vehicle. This allows for a much quicker setup compared to our competitors, who use a coaxial type design that can also be prone to vibration due to misalignment of the modules with the vehicle.

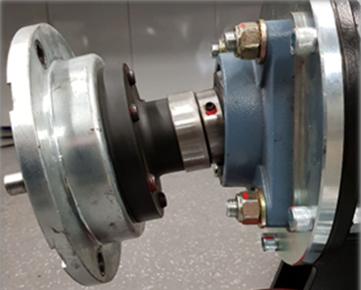

Our non–coaxial design means it is not critical what angle the modules are attached to the car (vertically or laterally). The ProHub units incorporate a twin Constant Velocity joint arrangement contained within the extension tubes of the modules. The retarders inside the modules are offset to ensure the connection to the vehicle can never be coaxially aligned

The ProHub AWD Chassis Dynamometer will accommodate up to +/- 10 °camber and 10 ° toe in /out, to accommodate live axle and IRS systems.

CAN CONTROL SYSTEM (CCS)

The new Mainline CCS (CAN Control System) is certainly the “next level”in sophisticated dynamometer control and accurate data acquisition technology.

The CCS features emerging and innovative hardware and software technologies that will satisfy the most fastidious operators. As the name suggests, this dynamometer technology is based on a robust, dependable, and efficient CAN communication network between a central head display unit and a remote CAN control unit, or multiple CAN control units, resulting in much faster data transfer speeds, faster control response and increased sensitivity for transient or intermittent data changes.

ADVANCED DYNAMOMETER CONTROL STRATEGIES

The Mainline CCS (CAN Control System) employs the latest dynamometer control technology. The dynamometer control incorporates various strategies to ensure fast, accurate and precise vehicle control under test.

Eddy Current Brake Mapping: Mainlines CCS dynamometers feature fully mapped eddy current retarders. This means the performance characteristics of the eddy current retarders under all expected operating conditions are known in advance, which allows for a fully optimised and precise control strategy to be implemented across all test modes. Combination Feed Forward & PID Control: A more advanced control system that can proactively predict a control strategy response to quickly changing demand or torque requirements, thus reducing the total error correction required by a traditional PID (proportional, integral, and derivative) controller. In simple terms, the dynamometer controller focuses on future control challenges, objectives, and solutions, instead of the past, and quickly responds to any required load corrections ahead of time, precisely matching the performance characteristics of the vehicle being tested.

ADVANCED MODES OF OPERATION

The ProHub AWD (CAN Control System) Chassis Dynamometers feature very sophisticated and advanced modes of operation that include the following testing solutions:

  • Fixed Speed (Steady State Control)
  • Fixed Torque (Variable Speed Fixed Load / Torque Control)
  • Drive Tests - Road Load Simulation (According to Vehicle Weight & Coefficient Data)
  • Linear Ramp Test
  • Non-Linear Ramp Test
  • User Definable Non-Linear Ramp
  • Drag Strip Run Data Download & Run Simulations

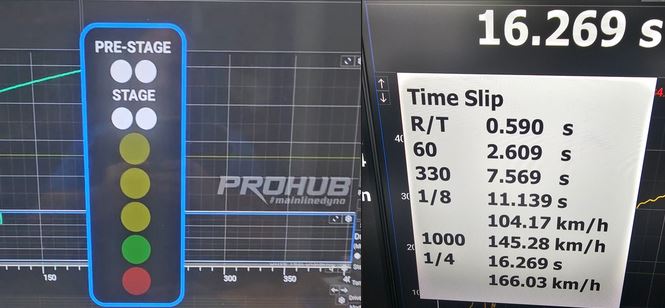

  • Drag Mode (Over Distance & Time and Vehicle Weight & Coefficient Data) ( Staged Lights Start- Time Slip at Completion)
  • Torque Balancing / Vectoring (Torque Percentage Left to Right)

Only Dyno In the State of Utah with the capability of doing Drag racing simulation and getting reallife drag slip times

Highest Rated Dyno In the State of Utah capable of 4600 AWD WHP or 3000 FWD/RWD WHP

Enjoy the new Road Mode!

Mainline dynos new road mode now offers varible ramp rate testing to simulate what the car does on the road with out having to remove the car from the dyno

KEY FEATURES

Mainline CAN Control System (CCS) Dynamometer Operating Software for Windows

  • Road Load, Fixed Load/ Torque, Linear and Non-Linear Ramp / Pull Tests, Drag Strip Run Time Simulations
  • 5 x 10 Minute Continuous Data Loggers (Pause, Resume, Review Logs – Save – Recall Logs)
  • User Configurable CAN inputs & outputs
  • Data Grid - Multiple Digital Data Displays (Up to 54 Displays Simultaneously)
  • Advanced Load Control Strategies (Precise, accurate, safe, super responsive & repeatable)
  • Digital Axle Speed Sensors & Precision Load Cells (Fitted to Each Module)
  • Automatic AFR / Lambda meter heater control (User-definable parameters)
  • Twin Channel  / LAMBDA Meter (CAN Interfaced)
  • AFR Fuel Types (Definable – Gasoline, Ethanol, Ethanol Gasoline, Methanol, Propane, Diesel, Hydrogen, Butane, Nitromethane)
  • Vehicle Cooling Fan Control ( On / Off Switching)
  • High-quality, heavy-duty, visually aesthetic power absorption modules (PAMS)
  • Space-saving design – Modules can be easily moved within your shop or stored when not in use.
  • Adjustable length torque reaction stabiliser bar (Operational stability & safety)
  • Wide vehicle track capabilities (Allows testing wide vehicles & off-road buggies)
  • Quality Frenelsa retarders (Power absorption units)
  • Up to 5000 Axle Rpm / 640 kph / 400 mph test speeds (Subject to vehicle gearing)
  • Fully Loaded Dyno Ramp Pulls - power calculated from measured torque (Unlike inertia-type dynos)
  • Run duration (Time) can be maintained with increasing performance levels (Unlike inertia dynos)
  • Maintains Engine & Driveline Thermodynamics (Unlike inertia-type dynos)
  • Perfect Steady State Control – Ideal for live tuning ECU applications
  • Stall Convertor Evaluation & Mapping Tests (Converter Loss / Efficiency)
  • Rolling workstation control storage cabinet with boom arm
  • Automatic weather station included standard (Live & continuous vehicle power correction)
  • Wireless keyboard dyno controller (All dyno control/operation from within the vehicle)
  • Computer control system, and Windows 11 ™ Professional OS standard

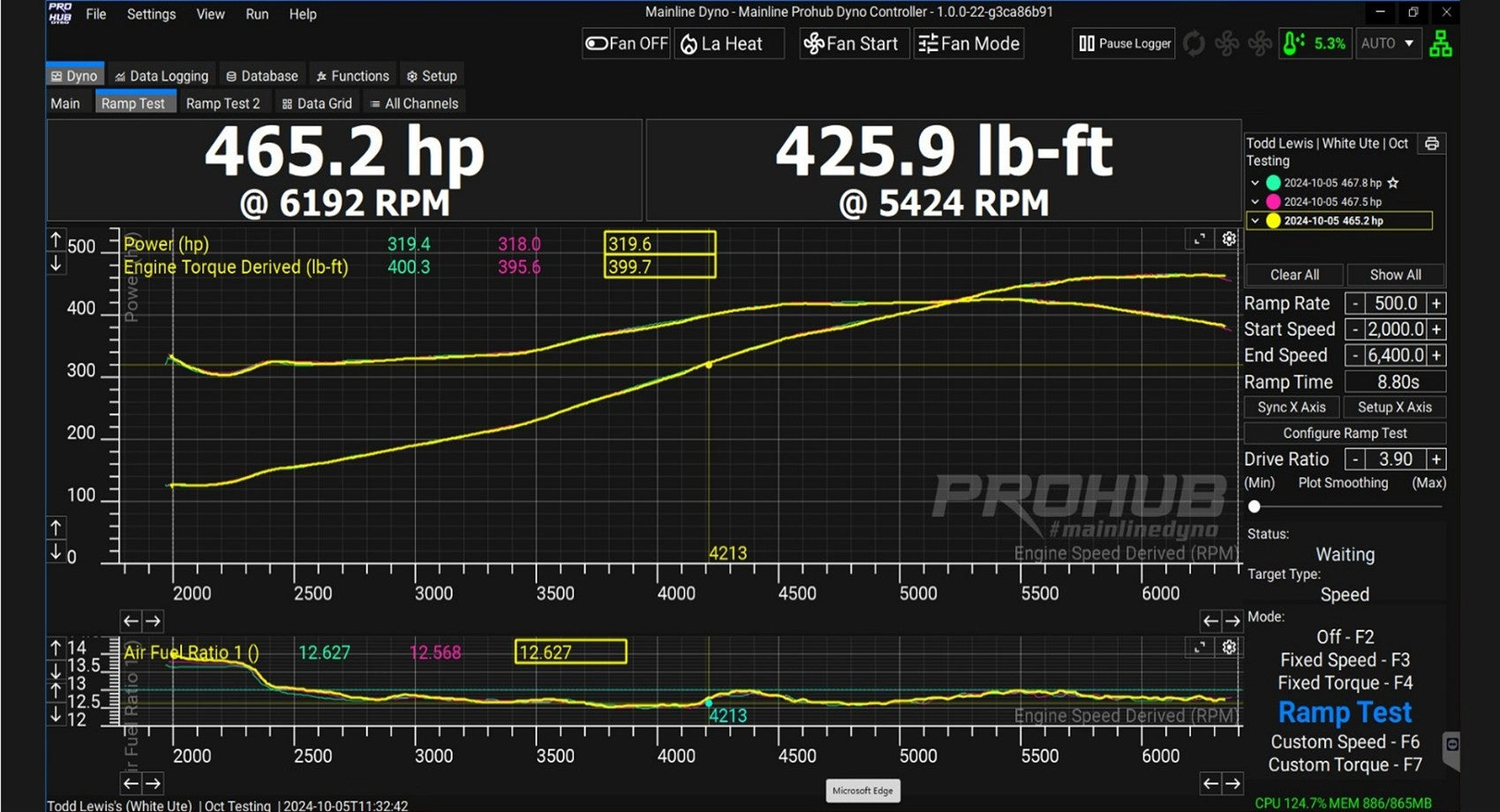

  • Torque & Power and other graph traces plotted live to screen / “Live as you drive” (multiple traces simultaneously)
  • Graph over graph comparison tests (Power / Torque graph over engine RPM)
  • Twin 7 BAR MAP/ Boost sensors (Pressure Drop Testing & Analysis)
  • Multiple MATHS channels (Fully user configurable- Create your own calculation channels)
  • Customer / Vehicle Performance Print Reports

STANDARD INCLUSIONS

  • Rolling Workstation Cabinet with Boom Arm
  • Left or Right-Hand Configuration (Confirmed Upon Order)

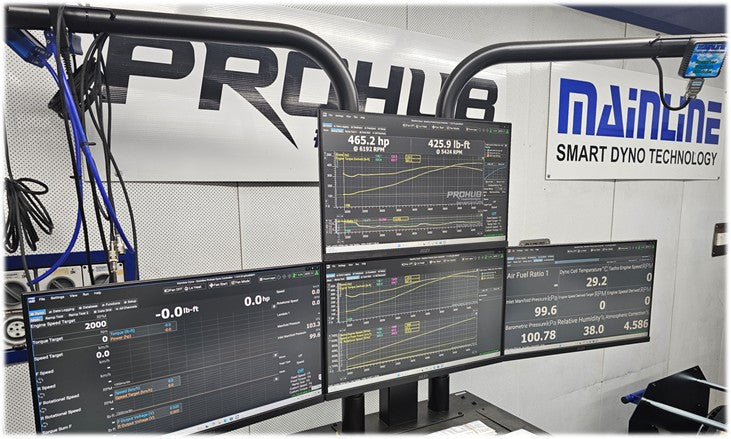

  • Twin 24” LCD Colour Monitors (Extended Desktop Modes)
  • Desktop PC, Win 11 PRO OS (Solid State HDD)
  • CCS Dynamometer Software Program (Mainline CAN CONTROL SYSTEM for Windows)
  • Multiple User Definable Channels
  • Multiple User Definable MATH Channels
  • CANBUS Interface (User Configurable)
  • Wireless Trackball Remote Keyboard Controller
  • Automatic Weather Station (Automatic Power Correction to Multiple International Standards)
  • Twin Channel MAINLINE MDLC2 Wide Band Air: Fuel Ratio/ Lambda Meter (CAN Interfaced)
  • Vehicle Cooling Fan Control ( On / Off Switching)
  • 2 x 7 BAR MAP / Pressure Sensors
  • Engine RPM (Derived from Axle Speed & Gear Ratio)
  • Engine Tachometer Input (Inductive Clamp)
  • Engine Tachometer Input (0 - 500VDC Voltage Probe)
  • 4 x Sets of Axle Hub Adapters (Purchaser's Choice)
  • Workshop Signage Pack
  • Mainline Dyno Merchandise Pack
